R-1010 10L rotary evaporator mainly used in biology, medicine, chemical,food and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.
R-1010 rotary evaporator features:
1.Teflon(PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum
2.The temperature control system, accurate and reliable.
3.In does not affect the system and solution under the condition of vacuum
distillation. continuous collection

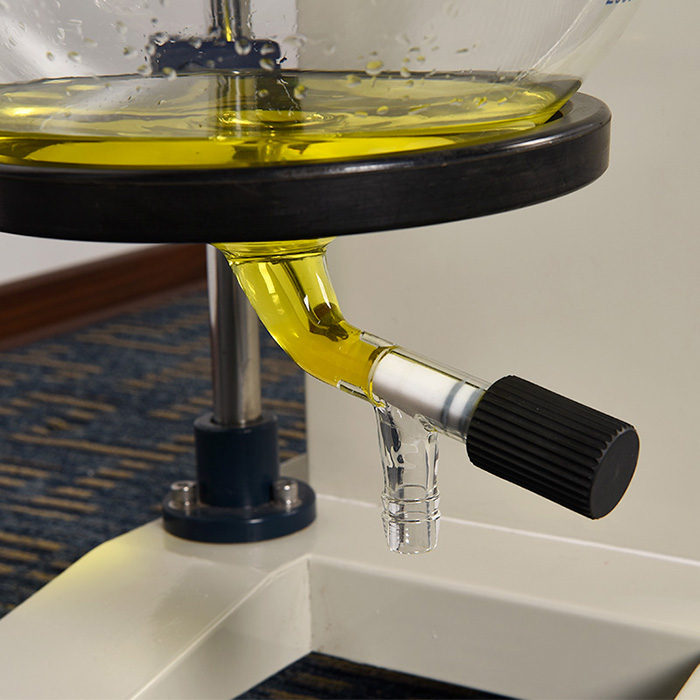

4.The PTFE disscharge valve, corrosion resistance, no pollution.
5.We have two kinds of conventional and explosion-proof type, can be selected according to the experimental environment.

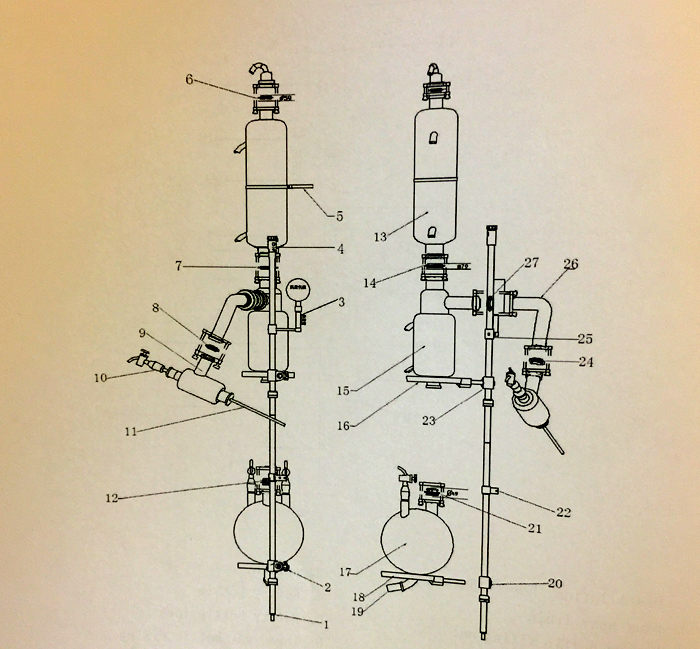

Schematic diagram of glass assembly
1.Uprigh
2.Cross clip
3.Vacuum table fixing rack
4.Condenser clamp fixing seat
5.Silicone rubber band
6.Flange gasket
7.Flange gasket
8.Flange gasket
9.Three bottles
10.Feed piston
11.PTFE tube
12.Flange gasket
13.a main condemser
14.Flange gasket
15.Auxiliary condenser
16.Condenser tray
17.Recovery bottle
18.Recovery bottle tray
19.Discharge valve
20.Cross clip
21.Flange gasket
22.Vertical rod joint
23.Cross clip
24.Flange gasket
25.Cross clip
26.Glass elbow
27.Flange gasket
