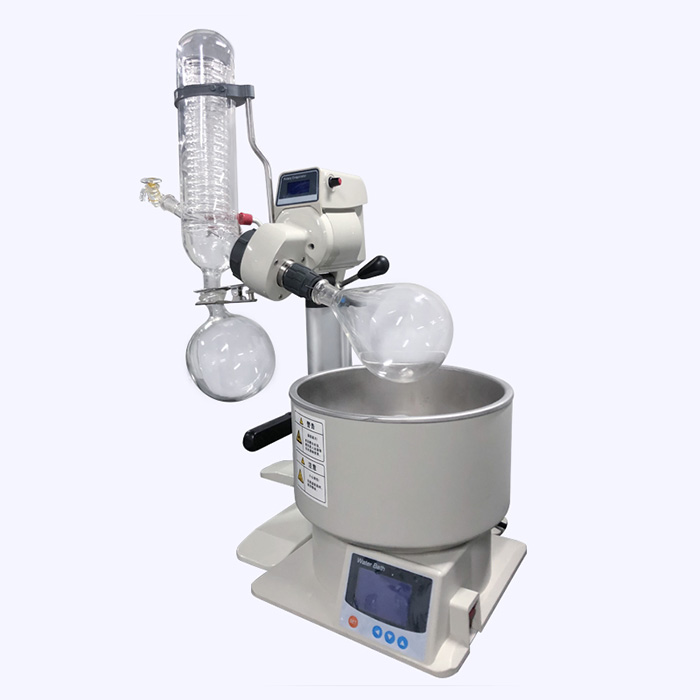

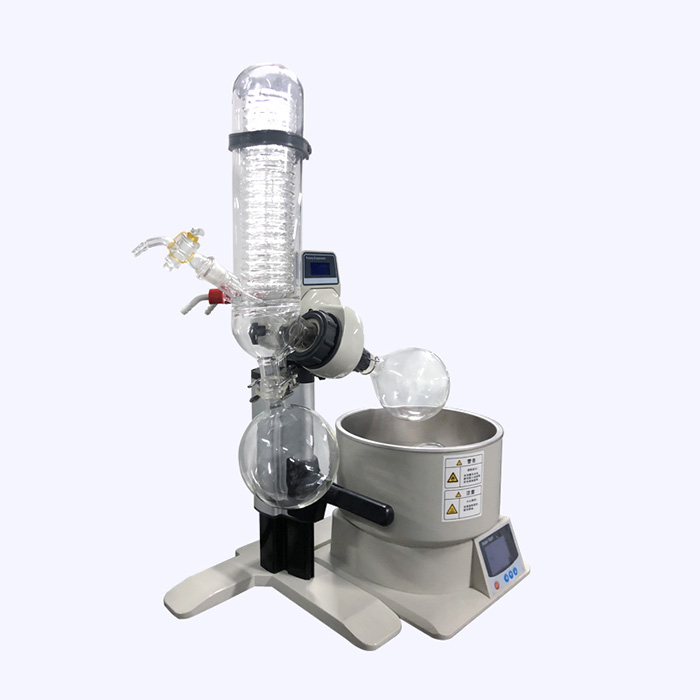

N-1100D rotary evaporator
N-1100-D is our new rotary evaporator,the rotating bottle capacity is 0.5L-2L,small in size, belonging to a kind of mini rotary evaporator.It is one of the commonly used tools in the chemical industry, the pharmaceutical industry, universities and research laboratories,etc.
Both N-1100-D and RE-201D belong to a small volume rotary evaporator. Compared to RE-201d rotary evaporator, N-1100-D has its own characteristics:
1.The rotating bottle of N-1100-D can be lifted manually or electrically.

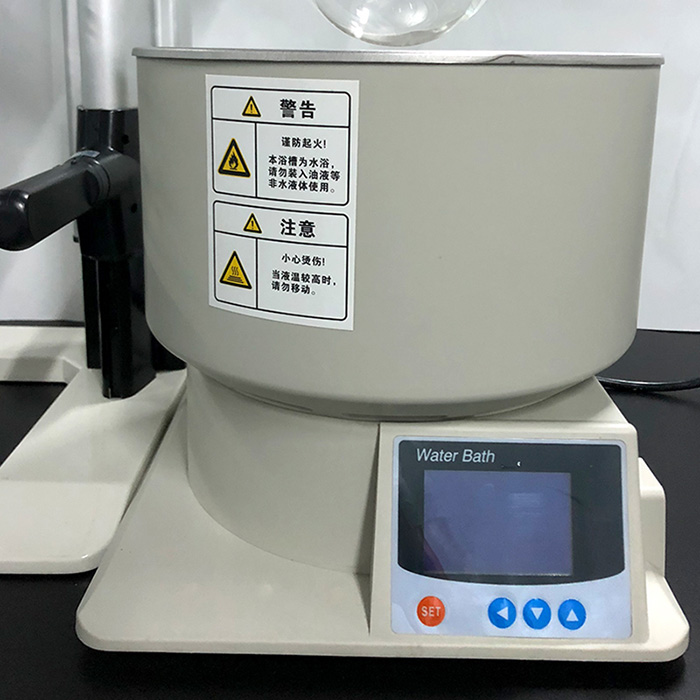

2.The water bath has separate electronic display controller that regulates the temperature.
3.Intelligent PID temperature controller can adjust the rotation speed of the rotating bottle.
| MODEL | N-1100-D |
| Rotary speed(Rpm) | 10~180 |
| Evaporating speed(ml/min) | 20 |
| Achievable vacuum(Pa) | 399.9 (below 3mmHg) |
| Temperature range(℃) | Room temp~100 |
| Temperature display | Keypad input Digital display |
| Speed-setting | Knob setting ,Digital display |
| Safety functions | Fuse |
| Functions of lifting table | Weight balancing Gliding elevating+ manual lifting |
| Rotary motor(W) | 25 |
| Heater wattage(KW) | 1.5 |
| Condenser model | Lean type water refrigerating |
| Rotary bottle(L) | 0.5~1 |
| Collecting bottle(L) | 1 |
| Vacuum sealing | Double sealing rings made of Teflon+ Vinton materials |
| Water Bath size and volume(L) | φ260×140·7.4 |
| Elevating stroke(mm) | 100+150 |
| Ambient temperature(℃) | 5~35 |
| Dimensions (mm) | 750L×320W×540H |
| Weight(kg) | 9.5 |
| Power Supply(V/Hz) | 220/50 |
