R-1005 Rotary Evaporator
R1005 5L rotary evaporator mainly used in biology, medicine, chemical,food and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.

5l rotovap

rotovap short path distillation

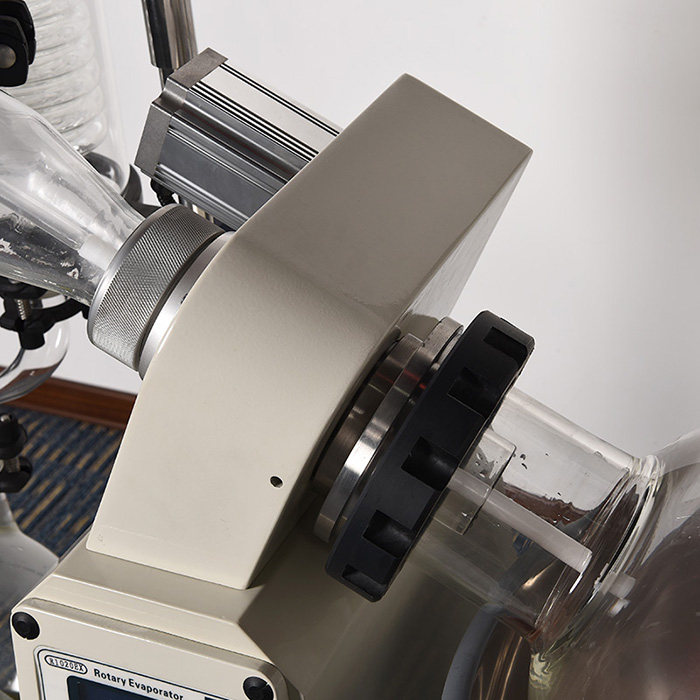

rotovap rotation shaft price

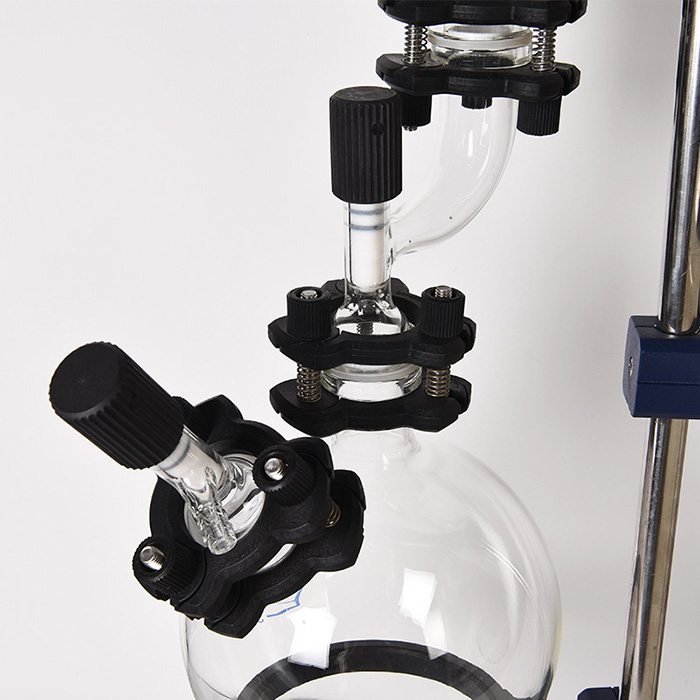

rotovap short path distillation receiving bottle

R-1005 rotary evaporator features:
1.Teflon(PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum.
2.The temperature control system, accurate and reliable.
3.In does not affect the system and solution under the condition of vacuum distillation. continuous collection.
4.The PTFE disscharge valve, corrosion resistance, no pollution.
5.We have two kinds of conventional and explosion-proof type, can be selected according to the experimental environment.

5l rotovap

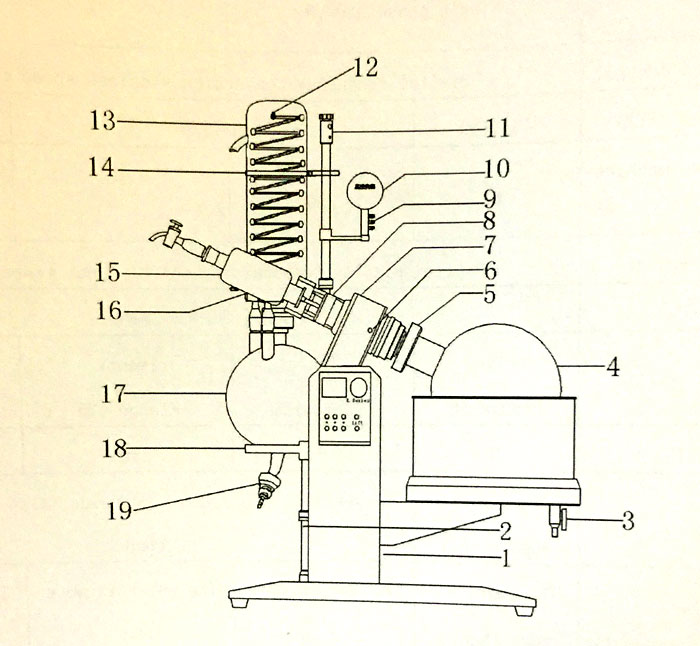

R-1005 rotary evaporator complete machine diagram:
1.Distillation:host+bath
 2.Upright
3.Plug assy lrain
4.Rotary bottle
5.Rotary bottle fixing nut
6.Rotary bottle lock
7.Nose
8.Three way bottle fixing nut
9.Vacuum gauge fixing seat
10.Vacuum meter
11.Condenser clamp fixing seat
12.Gas suction head
13.Condenser
14.Silicone rubber band
15.Three bottles
16.Condenser tray
17.Recovery bottle
18.Recovery bottle tray
19.Discharge valve
rotovap price

rotovap short path distillation

Model R1005
Optimum ambient temperature(℃) 5-35
Working power supply(V/Hz) Single phase 220/60
Main engine speed(RPM) 10-140
Main engine speed control Digital frequency conversion stepless speed regulation
Rotary electric machine(W) 40
Temperature control(℃) Digital display temperature control,room temperature -99℃
Maximum vacuum(Pa) 399.9(Below 3mmHg)
Rotating bottle(L) 5
Recoverty bottle(L) 3
Condenser tube Vertical double coil
Evaporation capacity(L/h) The water is more than 2 Alcohol is more than 4
Water bath pot material Stainless steel
Water bath pot size(mm) φ300*170
Lifting function Electric lift
Lift stroke(mm) 0-150
Whole power(Kw) 2.0
Outline dimension(mm) 765*400*1070
