R-1050 50L rotary evaporator mainly used in biology, medicine, chemical,food and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.
The rotary evaporator is developed under the vacuum negative pressure condition by the principle of constant temperature heating and thin film evaporation.
(1) The higher the degree of vacuum, the faster the speed, and the degree of vacuum when water evaporates should not be less than 0.096 MPa.
(2) The higher the temperature of the water bath, the faster the speed, generally not exceeding 80℃, according to the process requirements.
(3)The lower the cooling water temperature, the faster the evaporation rate is, and the effect of using the cooling water is better. R-1050 rotary evaporator features:
1.Teflon(PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum
2.The temperature control system, accurate and reliable.
3.In does not affect the system and solution under the condition of vacuum
distillation. continuous collection
4.The PTFE disscharge valve, corrosion resistance, no pollution.
5.We have two kinds of conventional and explosion-proof type, can be selected according to the experimental environment.

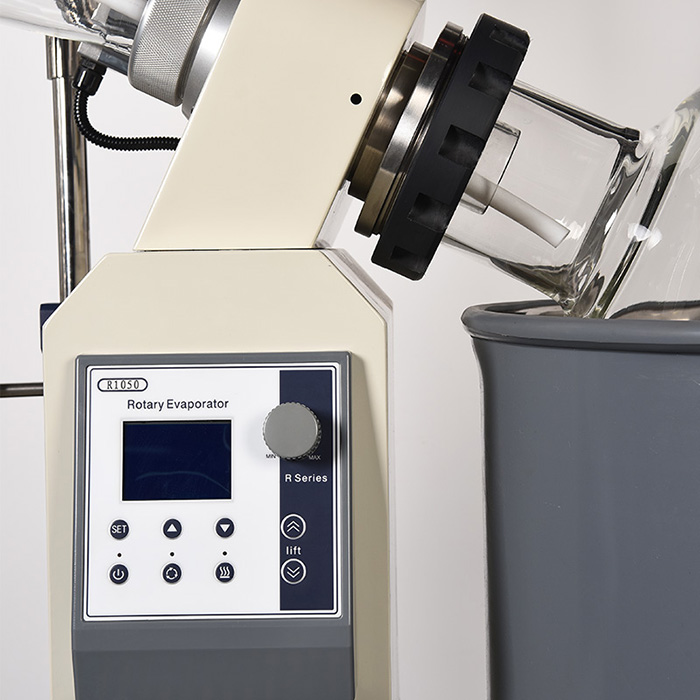

R1050 rotary evaporator complete machine diagram
1.Distillation:host+bath
2.Upright
3.Plug assy lrain
4.Rotary bottle
5.Rotary bottle fixing nut
6.Rotary bottle lock
7.Nose
8.Three way bottle fixing nut
9.Vacuum table fixing rack
10.Vacuum meter
11.Condenser clamp fixing seat
12.Suction flange
13.Main condenser
14.Silicone rubber band
15.Glass elbow
16.Auxiliary condenser
17.Three bottles
18.Condenser tray
19.Recovery bottle
20.Recovery bottle tray
21.Discharge valve
