RE-501 Rotary Evaporator
RE 501 rotary evaporator is a kind of small volume rotary evaporator , it is heated by water bath(oil bath) to form thin film under the negative pressure condition, evaporate highly, then condense and recycle the solvent simultaneously.RE501 rotary evaporator is particularly suitable for the heat-sensitivity material’s condensation, separation, crystallization, recovery and so on. It is one of the commonly used tools in the chemical industry, universities,pharmaceutical industry, and research laboratories,etc.

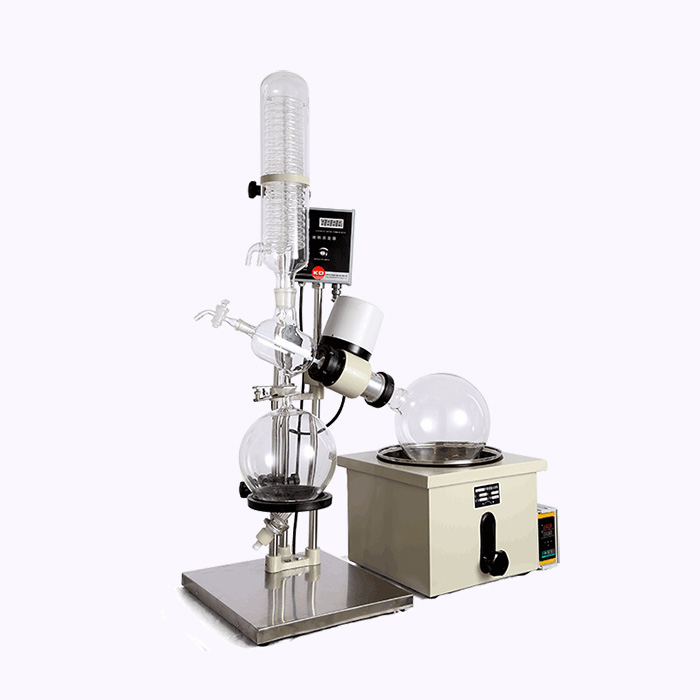

re 501 rotary evaporator

The glass components of the RE 501 Rotary Evaporator are all made of borosilicate glass (GG-17), which is resistant to high temperatures and corrosion.The sealing system is sealed with PTFE and can be continuously fed for customer convenience.

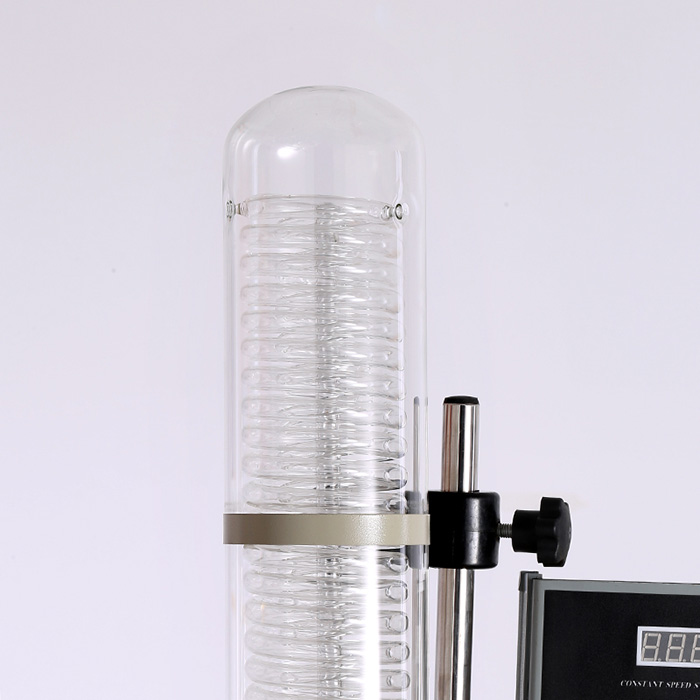

re 501 rotary evaporator conderser coil

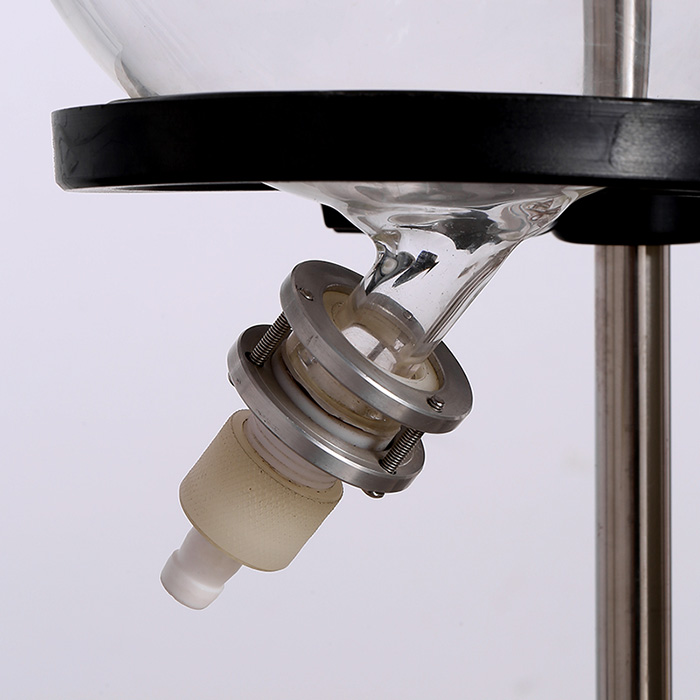

lab rotary evaporator easy drain valve

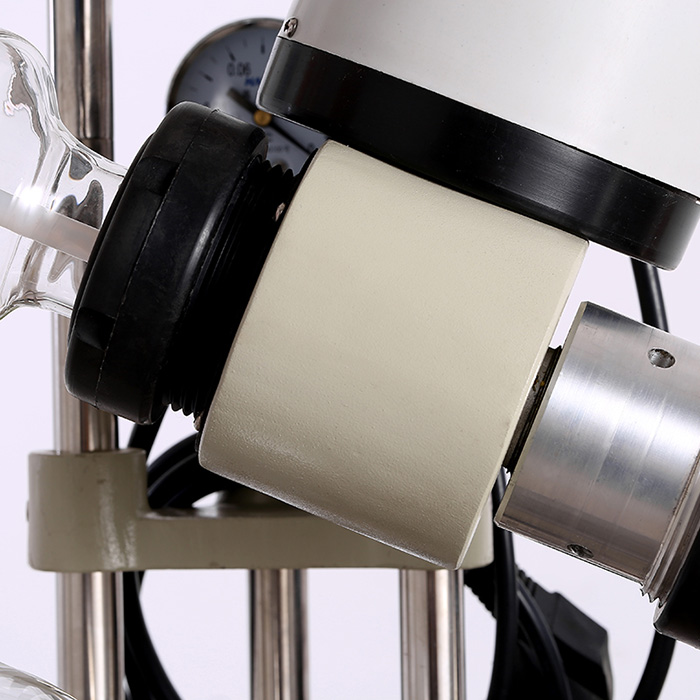

5L rotary evaporator motor

RE 501 rotary evaporator features:

1. Quick and easy lifting mechanism.

2. The evaporator can be tilted horizontally in the range of 0-45°.

3. High evaporation rate of the vertical condensation system.

4.Heating Tank.

Stainless steel heating tube provides heat source. The temperature range will be RT~99 ℃ with water. The water tank is cylindrical and made of high quality stainless steel. So it is corrosion resistance and durable. The tanks are available for 2-20liter rotating flask heated. Moreover, the tank can be moved according the rotating flask size.

5. Vacuum Sealing.

PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance.

6. Automatic temperature control digital display.

7. Rotating flask and Collection flask.

The flasks are made of GG-17 high borosilicate glass which is blowed by hand. Their intensity, concentricity, glossiness, and surface finish are better than rough flasks.

8. 110 V/60HZ can be customized.

Optional equipment
Circulating water vacuum pump: Used to provide a vacuum source.
Low temperature cooling liquid circulation pump: For condensation and reducing waste of materials.

re 501 rotary evaporator
medical rotary evaporator

lab rotary evaporator

Model RE-501
Rotating Flask(L) 5
Collection Flask(L) 3
Rotating Motor(W) 40
Rotating(R/min) 0-120
Water(Oil)Bath Power(W) 1500
Temp Control Mode/Range(℃) RT-399
Temp Resolution(℃) ±2
Evaporation Rate(L/H2O) ≥1.5
Max Vacuum Degree <133pa
Lifting Height(mm) 0-120
Water Bath Size(mm) Φ28*17
Condenser Vertical with charge pipe,Large Condenser,evaporating pipe
Lifting Mode Oil bath Manual Lifting
Voltage 220V/50HZ
Sealing Mode PTFE,fluoro rubber sealing
