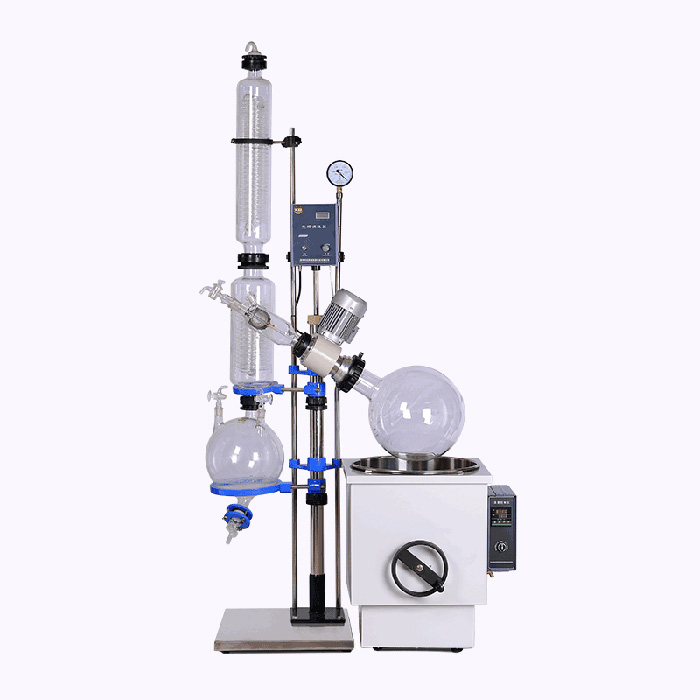

RE-1002 Rotary Evaporator
RE-1002 Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. The evaporating flask capacity is 10L，as the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The RE-1002 rotary evaporator is heated by water/oil bath to form thin film under the negative pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, solvent recovery and so on. And reflux extraction can be avaliable for parts evaporator models. It is one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc., while it is also the main means for concentrated extracts in producing and analysis experiments.
The rotary evaporator is the essence of domestic and foreign similar products, and sets our company successful practical experience. We have developed 10 liters, 20 liters, 50 liters large capacity rotary evaporator. And the equipment’s design follows efficient, practical, economic principles to meet customer's requirements maximally.
• Concentration of solutions
• Reclamation of solvents
• Vacuum drying of wet solids
• Degassing liquids
Features:
1. International advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux.
2. Double condenser, collection rate over 95%.
3. The rotating flask is easy to install and setup.
4. Continuous feed are available. (Inlet Valve).
5. Water bath, intelligent PID temp. controller, can be lifted up and down.
6. Reasonable structure, exquisite material.
Mechanical parts are made of stainless steel and aluminum die casting.
Glass parts are made of corrosion resistance, high temperature resistance, borosilicate glass.
Rubber parts adopt new standard materials, easy to change for users.
7. Built-in transmission system, frequency conversion speed regulation, stable and reliable speed.
8. Explosion-proof system is optional.
9. 110 V/60HZ can be customized.
Optional equipment:
Circulating water vacuum pump: Used to provide a vacuum source.
Low temperature cooling liquid circulation pump: For condensation and reducing waste of materials.
| Model | RE-1002 |
| Evaporating Flask （L） | 10 |
| Receiving Flask（L） | 5 |
| Rotating Motor（W） | 180 |
| Rotating（R/min） | 0-120 |
| Evaporation Speed(L/H2O) | >3L/h |
| Condenser Cooling Surface (sq.m.) | 0.57 |
| Vacuum Degree | 0.098Mpa |
| Sealing Mode | PTFE Sealing System |
| Max Vacuum Degree | ＜133pa |
| Water Bath Configuration | Water Bath Lifting or Electric Hois |
| Water(Oil) Bath Power(kw) | 3 |
| Temperature Control Range | 0-99（250）℃ |
| Temp Fluctuation/Resolution | ±1/1℃ |
| Condenser | Vertical Double Condenser |
| Voltage (V/Hz) | 220V 50/60 |
| Note | Customized configuration is available. |
