RE-2000 Rotary Evaporator

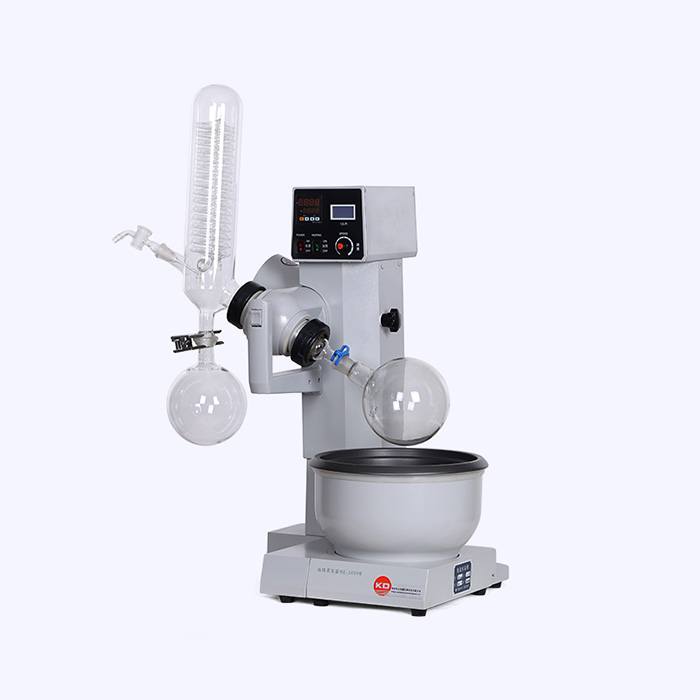

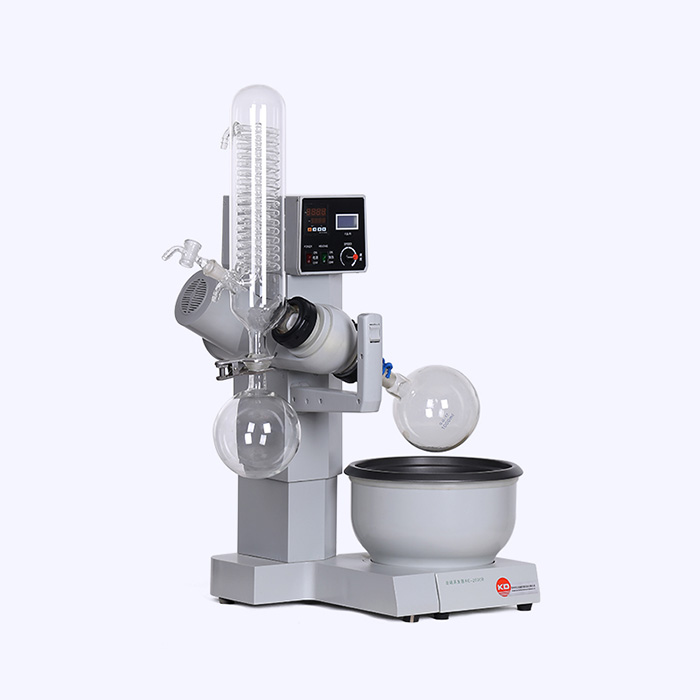

RE-2000 rotary evaporator includes:RE-2000A rotary evaporator,RE-2000B rotary evaporator,RE-2000E rotary evaporator.RE-2000A and RE-2000E use a two-line high-capacity blue backlit LCD as the interface,and control part adopts high-performance MCU as the master chip.
The rotary evaporator is heated by water bath(oil bath) to form thin film under the negative pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. And reflux extraction can be avaliable for parts evaporator models. It is one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc., while it is also the main means for producing concentrated extracts and analysis experiments.
1.Quick and easy lifting mechanism.
2.The evaporators can incline willfully along the horizontal direction within 0-45°.

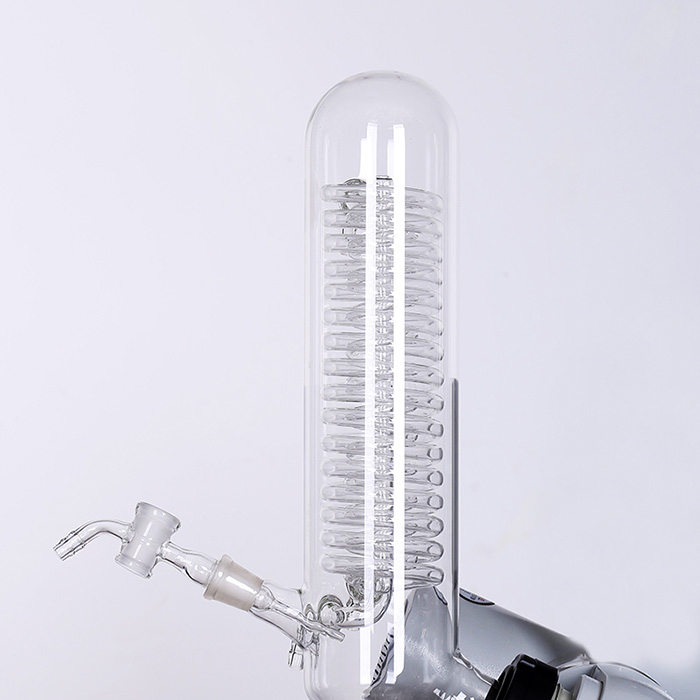

3.High evaporation rate vertical condensation system.
4.Heating Tank.
Stainless steel heating tube provides heat source. The temperature range will be RT~99 ℃ with water. The water tank is cylindrical and made of high quality stainless steel. So it is corrosion resistance and durable. The tanks are available for 2-20liter rotating flask heated. Moreover, the tank can be moved according the rotating flask size.
5.Vacuum Sealing.
PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance.

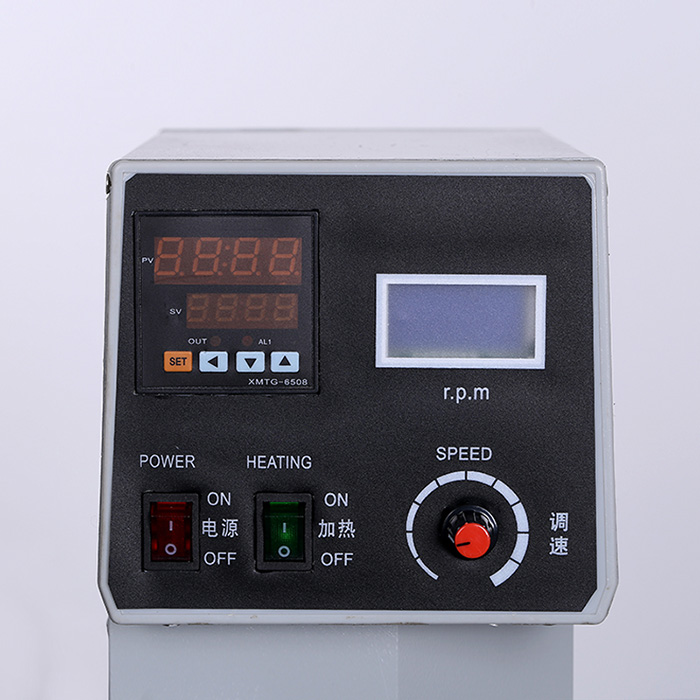

6.Automatic Temperature Control Digital Display.
Temperature digital display and control by pt100 sensor. when the pre-selected temperature is reached the temperature you setted, the controller automatically will turn off the heater supply, When it is lower than the pre-selected temperature, controller will switch on automatically to realize constant temperature.
7.Rotating flask and Collection flask.
The flasks are made of GG-17 high borosilicate glass which is blowed by hand. Their intensity, concentricity, glossiness, and surface finish are better than rough flasks.
| Model | RE-2000A | RE-2000B | RE-2000E |
| Evaporating Flask(L) | 2L 29#conical Ground Joint | ||
|
Receiving Flask(L) |
1L Ball Grinding Mouth | ||
| Motor Power（W） | 40 | ||
| Lifting Mode | Motor Automatic Lifting | ||
| Rotating Speed（R/min） | No Polar 0-120 | Digital Display 0-120 | LCD 0-120 |
| Lifting Height(mm) | 0-140 | ||
| Water Bath Power(KW) | 1.5 | ||
| Condenser | The double backflow integration standard condenser | ||
| Voltage(V/Hz) | 220 50/60 | ||
| Bath Temp Control Range(℃) | RT-99 | ||
| Water Bath Size（mm） | Φ230*130 | ||
| Evaporation Rage(L/H) | ≥1 | ||
| Extemal Size(mm) | 550*420*780 | ||
| Note | Customized configuration is available | ||
