RE-301 Rotary Evaporator
RE-301 rotary evaporator is a kind of mini rotary evaporator ,Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath . It is one of the necessary basic instruments in the chemical industry, pharmaceutical industry, universities and research laboratories and other units etc.

re 301 rotary evaporator

small volume rotary evaporator

RE-301 rotary evaporator features:

1. Quick and easy lifting mechanism.

2. The evaporator can be tilted horizontally in the range of 0-45°.

3. High evaporation rate of the vertical condensation system.

4. PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance.

5. Automatic temperature control digital display.

Temperature digital display and control by pt100 sensor. when the pre-selected temperature is reached the temperature you setted, the controller automatically will turn off the heater supply, When it is lower than the pre-selected temperature, controller will switch on automatically to realize constant temperature.

6. GG-17 high borosilicate glass evaporating flask and receiving flask.

The flasks are made of GG-17 high borosilicate glass which is blowed by hand. Their intensity, concentricity, glossiness, and surface finish are better than rough flasks.

7. 110 V/60HZ can be customized.

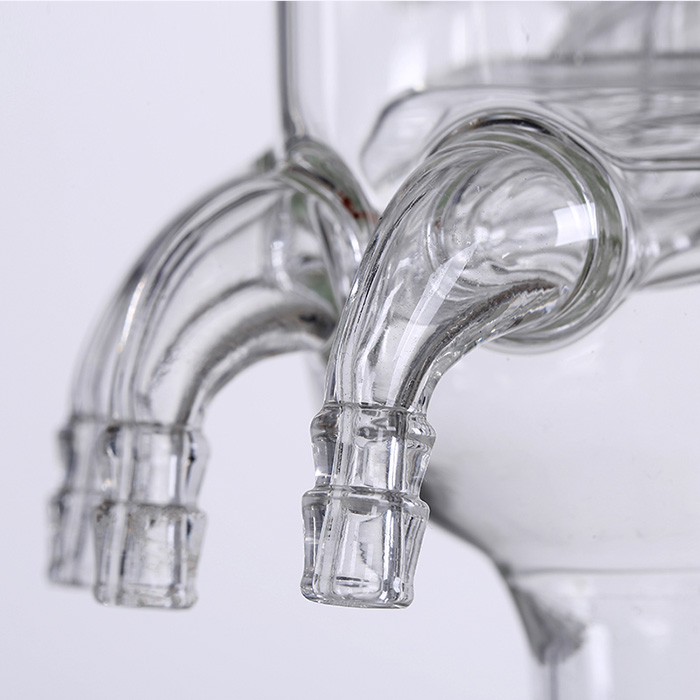

mini rotary evaporator inlet valve

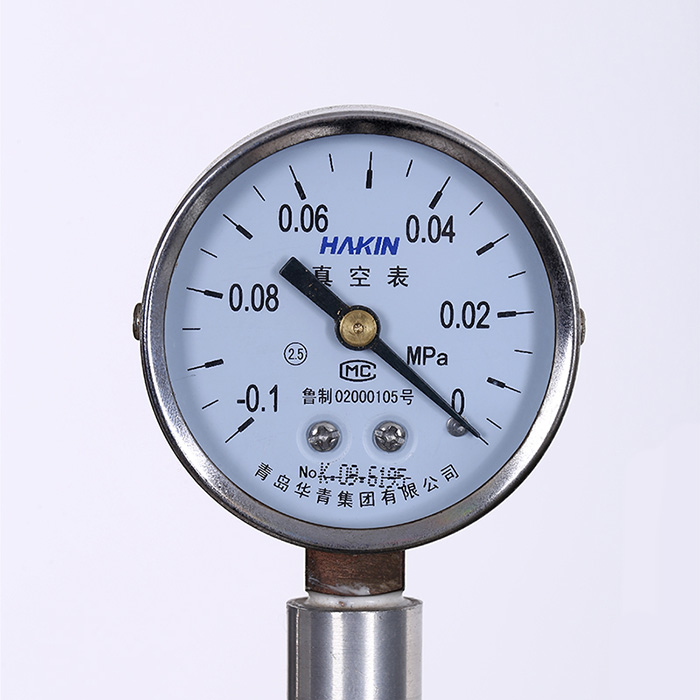

small volume rotary evaporator vacuum gauge

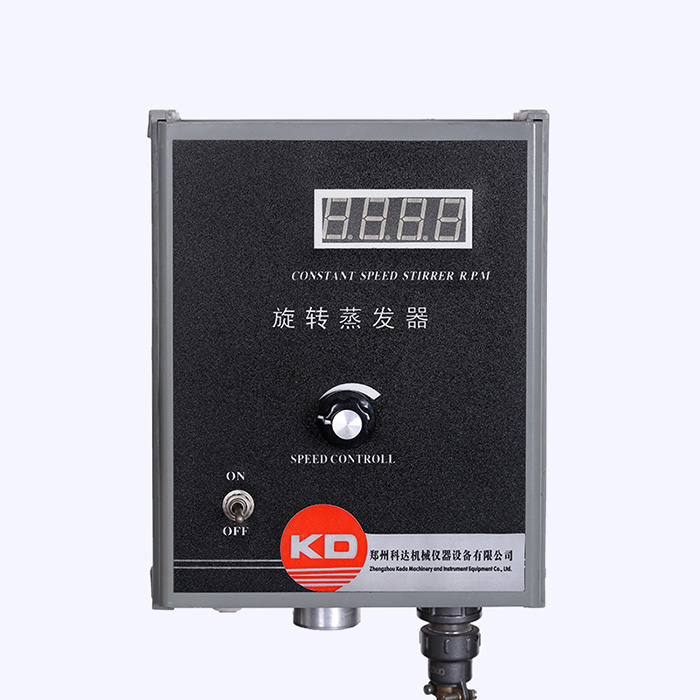

mini rotary evaporator digital convert

mini rotary evaporator package

Model RE-301
Rotating Flask(L) 3
Collection Flask(L) 2
Rotating Motor(W) 40
Rotating(R/min) 0-120
Water(Oil)Bath Power(W) 1500
Temp Control Mode/Range(℃) RT-399
Temp Resolution(℃) ±1
Evaporation Rate(L/H2O) ≥1.5
Max Vacuum Degree <133pa
Lifting Height(mm) 0-120
Water Bath Size(mm) Φ26*15
Condenser Vertical with charge pipe,Large Condenser,evaporating pipe
Lifting Mode Water/oil bath Manual Lifting
Voltage 220V/50HZ
Sealing Mode PTFE,fluoro rubber sealing
