R-1020 20L rotary evaporator mainly used in biology, medicine, chemical,food and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.
The rotary evaporator is operated under vacuum conditions, and the parts in contact with the materials are all made of high temperature resistant borosilicate glass and polytetrafluoroethylene material, which is especially suitable for the concentration and purification of biological products which are easily decomposed and denatured at high temperature.
R-1020 rotary evaporator features:
1.Teflon(PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum.
2.The temperature control system, accurate and reliable.
3.In does not affect the system and solution under the condition of vacuum distillation,continuous collection.
4.The PTFE disscharge valve, corrosion resistance, no pollution.
5.We have two kinds of conventional and explosion-proof type, can be selected according to the experimental environment.

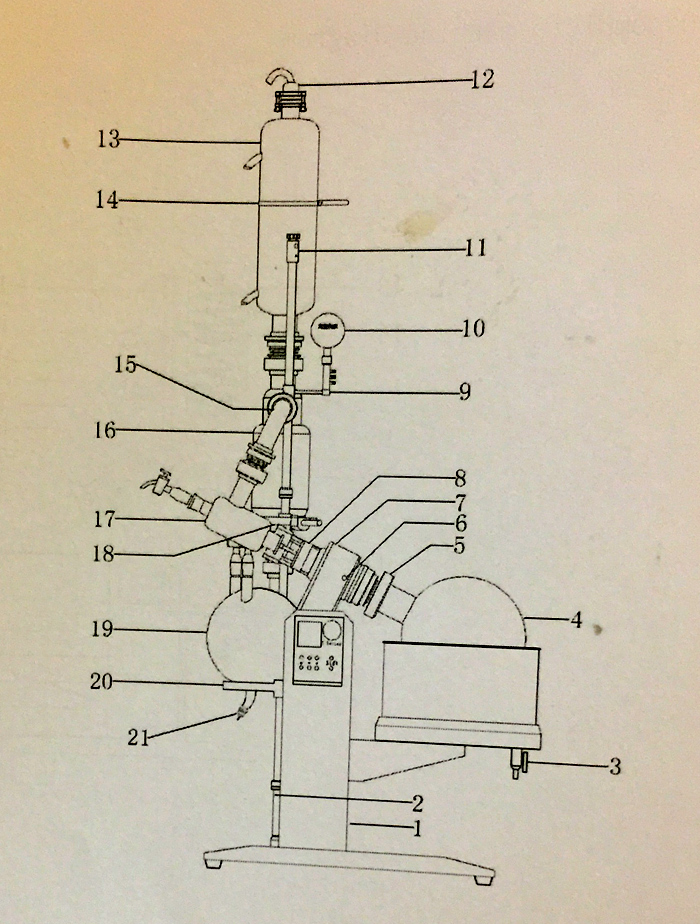

R-1020 rotary evaporator complete machine diagram:
1.Distillation:host+bath
2.Upright
3.Plug assy lrain
4.Rotary bottle
5.Rotary bottle fixing nut
6.Rotary bottle lock
7.Nose
8.Three way bottle fixing nut
9.Vacuum table fixing rack
10.Vacuum meter
11.Condenser clamp fixing seat
12.Suction flange
13.Main condenser
14.Silicone rubber band
15.Glass elbow
16.Auxiliary condenser
17.Three bottles
18.Condenser tray
19.Recovery bottle
20.Recovery bottle tray
21.Discharge valve
