D-R-1050 Rotary Evaporator
D-R-1050 50L rotary evaporator has two receiving bottles and two condensers,it is mainly used in biology, medicine, chemical,food and other fields of test, test and production. Has a large capacity, large caliber rotary evaporation bottle, placed in a water bath, rotate the heating, so that the solution of diffusion efficient evaporation. Product can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle(vacuum)pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.

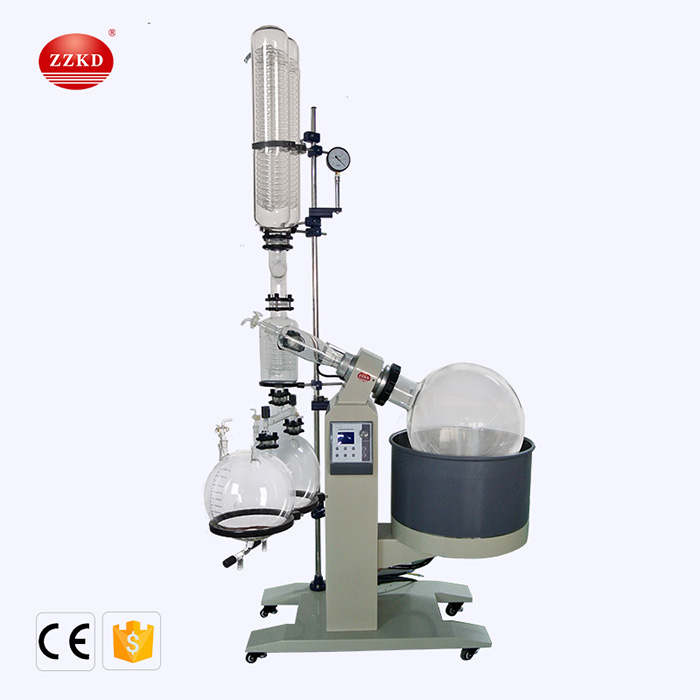

D-R-1050 50L rotary evaporator

D-R-1050 50 liter rotary evaporator

D-R-1050 rotary vacuum evaporator

D-R-1050 rotary vacuum evaporator 50L :

1.Teflon(PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum.

2.The temperature control system, accurate and reliable.

3.In does not affect the system and solution under the condition of vacuum distillation. continuous collection.

4.The PTFE disscharge valve, corrosion resistance, no pollution.

5.We have two kinds of conventional and explosion-proof type, can be selected according to the experimental environment.

Mode D-R1050
Optimum ambient temperature(℃) 5~35
Working power supply (V/Hz) Three phase 220-240V/380v/60Hz
Main engine speed control Digital direct current stepless speed
Main engine speed (RPM) 20~110
Rotary electric machine (W) Brushless 250
Temperature control (℃) Digital display temperature control,room temperature -99
Maximum vacuum (Pa) 399.9(Below 3mmHg)
Rotating bottle (L) 50
Flange Size Flange 125
Receiving bottle (L) 20

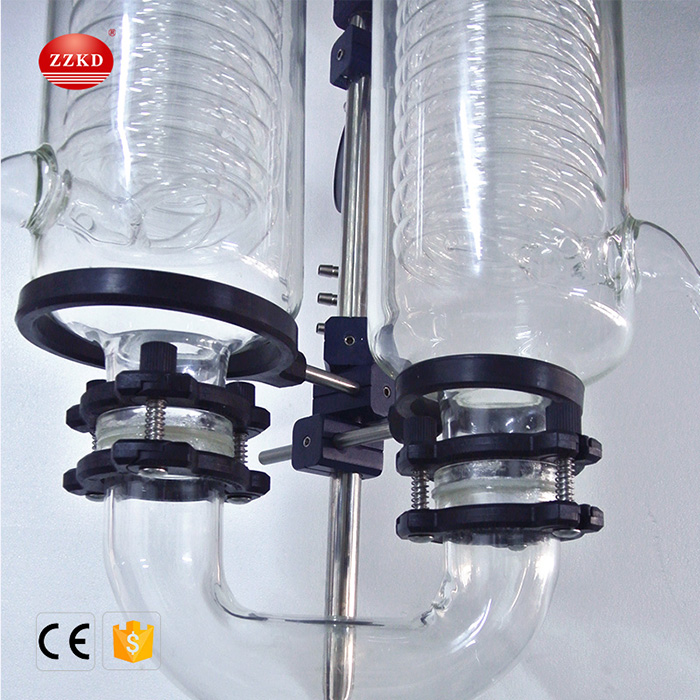

Condenser tube Vertical double main condensers + one auxiliary condenser, High effeciency reflux coil condensers
Evaporation capacity (L/h) Water ≥9
Alcohol ≥19
Water bath pot material Stainless steel
Water bath pot size (mm) Φ550×320
Lifting function Electric + hand lift
Lift stick (mm) 0~180
Whole power (KW) 4.0(220-240V)
Outline dimension (mm) 1320×770×2340
