What Is The Cost Of Industrial Rotovap Evaporator?

Product Discription:

Rotovap machine are commonly used equipment in chemical laboratories that efficiently and gently remove volatile solvents from samples by evaporation. They can be found in almost every organic laboratory. The spinner flask is heated under negative pressure to spin-form the film, evaporate, and then the vapor is condensed, liquefied, re-collected and separated.
A typical thin film evaporator is equipped with a water bath that can be heated in a metal container or crystal dish. This prevents the solvent from freezing during evaporation. The solvent is removed under vacuum, trapped in a capacitor and collected for reuse or disposal.

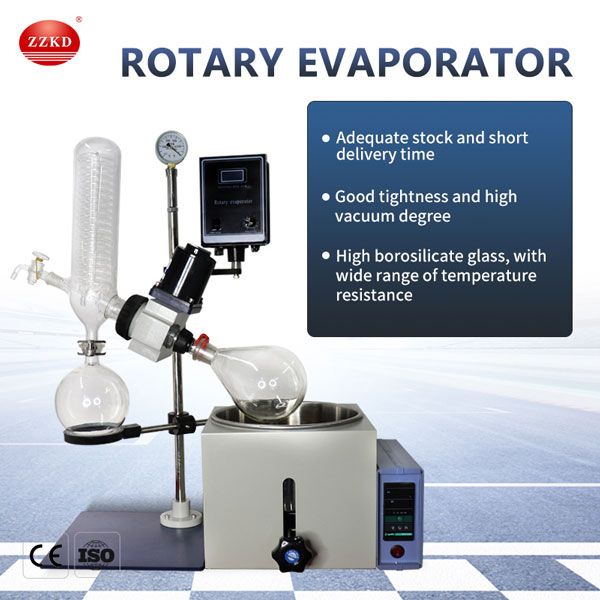

industrial vacuum rotary evaporator
If you want to know the cost of an industrial rotary evaporator and rotovap price, please contact us in time, and we will customize a reasonable procurement plan for you. And, we can provide total solutions for industrial vacuum rotary evaporators such as recirculation coolers and vacuum pumps.
The industrial vacuum rotary evaporator has been created to respond to the need of chemists and biochemists all over the world. The industrial applications of the rotary evaporator are numerous, however embrace crude oil processing, separation of cannabinoids, molecular cooking, flavor and fragrance creation and many more. Vacuum evaporators as a category operate because reducing the pressure above a bulk liquid lowers the boiling points of the element liquids in it. Liquid solvents can be removed without extreme heating of what are sometimes complex and sensitive solvent-solute mixtures. Some workstations can be found that provide evaporation capability. Single heated or unheated stations are currently available with nitrogen blowdown or vacuum-based evaporation.

Features of rotary evaporator:

1. V-type adopts vertical cooler, which occupies a small space. The four-way bottle structure is adopted, and the concentrated liquid is instantly returned to the gathering bottle from the condensation tube, and will not flow back into the pattern bottle alongside the pipette. It is suitable for concentrated use of analytical samples with out contaminating the samples.
2. The height of the vertical condenser tube is decreased, however the variety of coils of the coil is increased as a outcome of the usage of fine expertise, which increases the cooling area. Because the position of the suction (decompression) nozzle is changed to the lower part, it is safer to connect with the vacuum tube.
three. The lifting and reducing operation of the body is very convenient. The lifting handle can move up and down smoothly and lock it successfully. There can be an auxiliary extension on the upper a part of the principle physique to adjust the position of the buffer bottle or small pattern bottle, and it might possibly extend and slide 30cm up and down from the opening half.
4. It can be used in reference to the solvent restoration system DPE-1300·1400. The DPE-type restoration bottle can gather organic solvents, and the waste liquid container may be recovered in a closed circulate path by way of the operation of the lock to keep away from the solvent being exposed to the air.
5. The VF sort, which makes use of explosion-proof coated glass for the condenser tube, restoration bottle and spool bottle, has the same transparency and wonderful bodily properties as the standard sort. This design solves the problem of glass scattering and hurting individuals in case of damage.
6. When utilized in mixture with the vacuum controller NVC sort connection, the recovery effectivity of the mini rotary evaporator can be significantly improved.

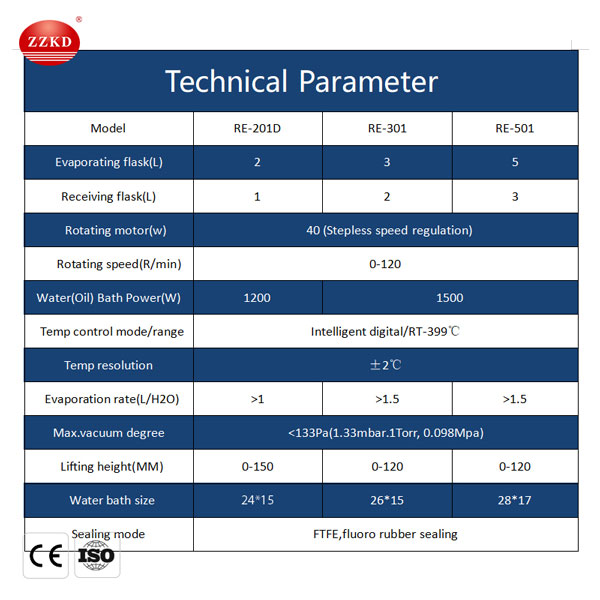

RE-201D Parameters:

rotovap cost

The utility of rotary evaporator:

Mainly used for continuous distillation of huge quantities of volatile solvents beneath decreased pressure. In explicit, the concentration of the extract and the distillation of the receiving liquid throughout chromatographic separation can separate and purify the reaction product. The basic precept of the industrial vacuum rotary evaporator is vacuum distillation, that's, beneath lowered strain, when the solvent is distilled, the distillation flask is continuously rotating.

The structure of the rotary evaporator:

The distillation flask can be a pear-shaped or round-bottomed flask with a standard floor mouth interface, connected to a decompression pump by way of a excessive reflux serpentine condenser, and the other opening of the reflux condenser is related to a receiving flask with a ground mouth to be used. Receive evaporated natural solvent. There is a three-way piston between the condenser tube and the decompression pump. When the system is related to the atmosphere, the distillation flask and the liquid-contacting flask can be removed to switch the solvent. When the system is communicated with the decompression pump, the system ought to be in a lowered state. strain state. When in use, the pressure should be reduced first, and then the motor should be began to rotate the distillation flask. At the tip, it should be stopped first and then vented to the atmosphere to forestall the distillation flask from falling off during rotation. As a warmth source for distillation, it's often geared up with a corresponding fixed temperature water tank.

How to make use of a rotary evaporator?

1.Before beginning the machine, first turn the pace management knob to the left to the minimum, press the power change, the indicator gentle will turn on, and then slowly turn it to the right to the required pace. Generally, the industrial vacuum rotary evaporator bottle uses medium, low speed, and the solution with high viscosity makes use of a decrease speed. The flask is a normal interface of No. 24, with two forms of flasks, 500ml and 1000ml, and the answer quantity is mostly not more than 50%.
2. When using, the stress must be decreased first, and then the motor should be turned on to rotate the distillation flask. At the tip, the motor ought to be stopped first, after which the ambiance must be opened to stop the distillation flask from falling off throughout rotation.
3. Height adjustment: Manual carry, flip the handwheel on the highest of the machine column, forward flip to rise, reverse flip to drop. Electric carry, touch the up key to boost the host, and contact the down key to descend.
4. There are two exterior connectors on the condenser for cooling water. One end is connected to the water inlet and the other end is connected to the outlet water. Generally, tap water is related. The decrease the temperature of the condensed water, the higher the impact. The upper port is provided with a vacuum connector and connected to the vacuum pump hose.
