Different types of rotovap machine use rotary evaporators (flasks) to increase the evaporation area and place them in a waterbath, whereas rotating and heating the tools to uniformly warmth the solution within the evaporation flask. Rotary evaporators havegradually turn into a super and essential instrument for manufacturing and analytical experiments within the chemical business,
pharmaceutical trade, universities and scientific analysis laboratories for concentration, drying and restoration.There are many forms of rotary evaporators. To clear up varied faults of rotary evaporators, together with leakage of rotary evaporators,operators should perceive the various parts that make up rotary evaporators. Next, let's take a look at the variouscomponents of the rotary evaporator!

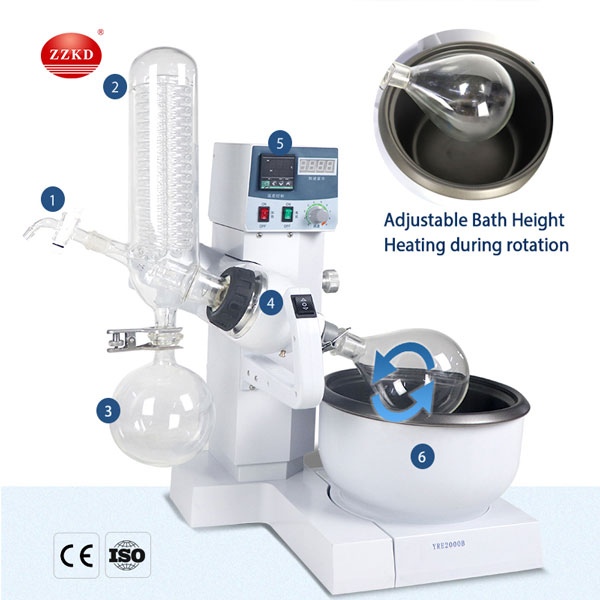

Various elements of the rotary evaporator:

1. Evaporating flask: maintain the pattern
2. how rotovap works: The rotary motor drives the evaporating flask with the pattern, and may set a sure rotation speed;
three. Evaporation tube: The evaporation tube has two capabilities. First, it acts as a rotating support shaft for the sample, after which
by way of the evaporation tube, the vacuum system sucks the sample out.
4. Vacuum system: used to minimize back the air strain of the rotary evaporator system, there are usually two circulating water
5. Fluid heating pot: There are often two heating strategies, water tub heating samples and oil tub heating samples;
6. Condenser tube: use a serpentine condenser or other condensing agents (such as dry ice and acetone) to condense the pattern;
7. Condensation pattern receiving bottle: After condensation, the sample enters the receiving bottle.


During the use of dfferent kinds of mini rotary evaporator how rotovap works the leakage of rotary evaporators is amongst the frequent types of rotaryevaporators. During the use course of, consideration must be paid to frequent rotary evaporator leak detection. Phenolphthalein take a look at paper can be used to verify for leaks in rotary evaporators, as a result of ammonia is alkaline and turns red within the presence of phenolphthalein check paper. When you look, the leak is usually the place there is no frost in the evaporator. You can also use soapy water to find the leak at the leak.

Halogen lamps and halogen leak detectors can be used to check for leaks in freon evaporators,and soapy water can be used to find leaks.If the rotary evaporator leaks, first check the evaporator pipes to see if there are any traces of oil, as a outcome of freon and oil are miscible, and if freon leaks, it's going to leak from the leak. When utilizing a halogen lamp for leak detection, if there is a leakage of Freon, the flame of the halogen lamp will change to green, light green, grass green, purple green, purple, and so on. to judge how a lot Freon leaked. If the flame is dark green or purple, the phosgene in the flame is poisonous and can't be checked by this technique for an extended time.


Various troubleshooting of rotary evaporator:

1. The motor doesn't turn
Methods to take: Re-insert the plug and connect the disconnection. Update the motor fuse or affirm that the ability provide is regular. Update the circuit board or electrical management field. Connect the bottom wire or change the work location. Exclude in accordance with the inverter handbook.

2. The bathtub is not heated
Method to take: Check the power supply 220V. Replace heating coil. Replace solid state relay or relay board. Change the thermostat. Check probe wiring or update probe.

three. Warm up the bath
Method to take: Change the temperature controller. Replace strong state relay or relay board. Change the probe or temperature controller.

4. The vacuum cannot be pumped up
Methods to take: empty the solvent and test with an empty bottle. Change the oil (water) of the vacuum oil pump, clear and overhaul. Detect and get rid of section by part alongside the vacuum pipeline. To reassemble, clear the grinding mouth of the glasswool sandwich panel, apply vacuum silicone grease, and align and tighten the flange mouth.



Correct set up steps and proper operation strategies can scale back the frequency of failures of different varieties of rotary evaporators. Please take care and maintain your experimental equipment corresponding to rotovap in chemistry in time.

ZZKD not solely sells rotary evaporators of various capacities from stock for a protracted time, but also can give you vacuum pump for rotovap in chemistry value, ZZKD has been providing you with after- sales service.

If you need a citation for a rotary evaporator, please contact us in time!
