Our R-1005(5L rotovap), R-1010(rotary evaporator 10L), R-1020(rotary evaporator 20L), R-1050(50 liter rotary evaporator) rotary evaporators are made of high quality borosilicate glass.

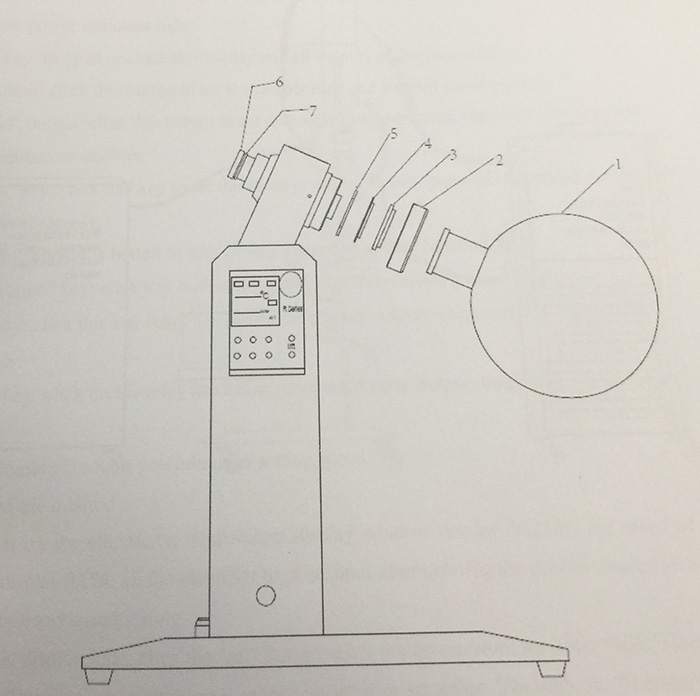

The teflon sealing ring icon sets in the installed glass rotating shaft in sequence,and then spin the bottle retaining nut sleeve in spinner flask root, retainer ring is sheathed on th spin the bottle neck.Spin the bottle:by an internal hexagonal wrench insert head stock(left the bias direction)holes in the rotating shaft to rotate the shaft hole and the base hole place coincidence,the inner hexagonal spanner in into a period of the rotation axis can’t turn again until,finally,the equipped with fixed nut and a check ring spin the bottle is sheathed on the glass rotating shaft neck,tighten spin the bottle fixing nut,turning axis of rotation,so that the smooth rotation with the shaft center line. 1.Rotary bottle
2.Rotary bottle fixing nut
3.Rotaty bottle fixing nut retainer
4.Teflon sealing ring
5.Teflon sealing ring
6.Glass flange
7.O type circle
