How To Use Rotavapor?

Rotovap machine application areas: used to separate a giant number of elements with excessive volatility; used to take away residues or decolorization; suitable for merchandise with excessive viscosity and simple to freeze; used for heat-sensitive materials. The open and direct development of rotary evaporators additionally makes them very straightforward to maintain and repair. In addition, these evaporators are designed with various security options (dry warmth shutdown, over temperature protection, soft begin spin, over current protection).
This time, the editor will take you to find out about 10 liter rotovap Problems and solutions to Rotary Evaporator Problems, including problems such as Rotary Evaporator Solvent Temperature being too excessive.

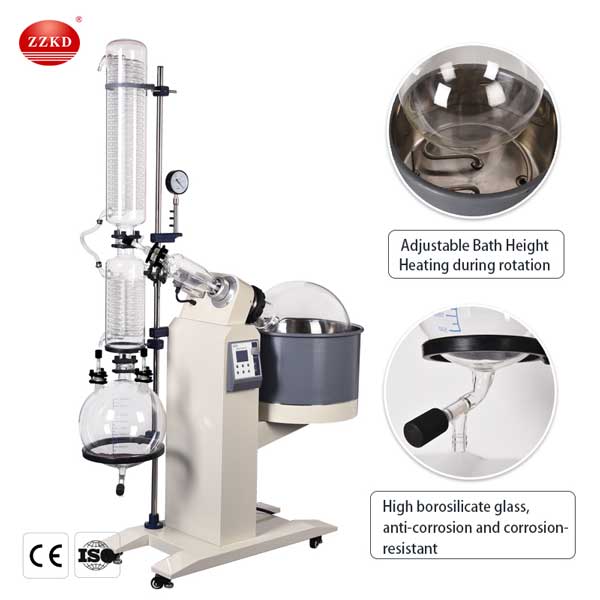

how rotavator works

The technique of stopping solvent spraying during rotary evaporation:

• The temperature should not be too high, and the temperature of the water bathtub should not exceed 30 levels Celsius, in order that the Rotary Evaporator Solvent Temperature is not going to be too excessive.
• Don't pack too much. If it is a low boiling point solvent, you can think about not heating it and regulate the vacuum diploma slowly.
• Replace the recycling bottle with a bigger capacity. Generally talking, the smaller the volume of the recycled bottle, the simpler it is to bump.
• The vacuum stress shouldn't be too high, no one should depart through the steaming process, always listen, and open the vacuum valve as soon as there are signs of ejection.
• For the solvent with low boiling level and easily turbulent spray, function the rotating steam exhaust port along with your fingers to correctly exhaust and pressurize.
• First spin externally in the water bathtub till water mist seems exterior the flask, after which steadily scale back the volume of the water bath contact till it's steady and not turbulent.
• Use anti-shock and anti-boiling balls, which could be poured back after spraying. This requires ensuring that the explosion-proof ball is clear, so it must be cleaned before each use.

How to choose rotary evaporator?

The finest method to make use of a rotary evaporator is called the golden "Δ20°C rule". In order to totally condense the steam, the temperature of the cooling circulator must be set about 20°C beneath the steam temperature. For instance, at a bath temperature of 50°C, a solvent vapor temperature of 30°C is produced, followed by condensation at 10°C.

How to choose the pressure of the rotary evaporator?

The strain and temperature of how rotavator works are crucial. In basic, there is a linear relationship between the temperature of the water bathtub and the evaporation fee. The more energy you employ within the evaporation course of and the more vitality is removed from the condensing part, the more efficient the distillation will be. The premise is that you simply additionally have to take care that the condenser has enough cooling capability and is secure under stress.

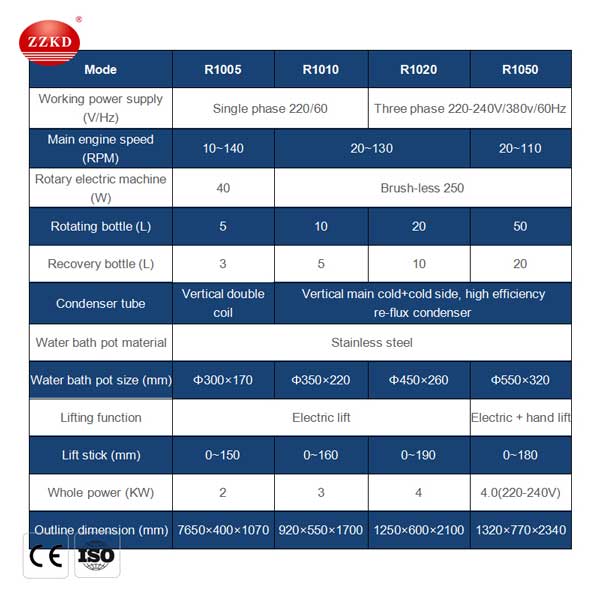

how to use rotavapor

Air leakage detection of rotary evaporator:

Rotary Evaporator Problems How to detect the leak of how rotavator works?
Rotary evaporator is a traditional tools and instrument within the laboratory. It is a standard phenomenon that air leakage happens throughout use. Air leakage brings you a lot of troubles through the check process, which slows down the normal vacuum distillation speed and reduces the effectivity. If there is a large air leak, the situation of the air leak may be quickly discovered and resolved shortly. However, underneath regular circumstances, many air leaks cannot be discovered. Here is a straightforward and small technique:
Connect the rotary evaporation instrument and the vacuum pump, join the rotary bottle and the gathering bottle, then close all the valves, open the vacuum pump and let the rotary evaporator work. When it can't be pumped to greater than zero.09, it means that there is a slight leakage in the whole system. At this time, please connect the pipeline to the air launch valve and connect the water supply. And open the valve, use unfavorable strain to suck water into the rotary evaporator, so that each glass area in the how rotavator works is crammed with water. (When the water fills the condenser and the amassing bottle, the rotating bottle and the dynamic sealing system of the rotating shaft, the water will generate a certain weight. At this time, to be able to avoid harm to the instrument, the personnel should cooperate with the hands to hold every part firmly.) At this time, you'll have the ability to Observing the bubbles in the whole vacuum system, it means that there's a problem of poor sealing in this place, after which you'll find the issue and do further plugging treatment.
ZZKD is an enterprise integrating production and trade, offering experimental and production tools, located in Henan Province, China. Only provides clients with cost-effective and customized personalized gear. ZZKD's major merchandise embody a sequence of equipment for evaporation and extraction, together with rotary evaporators (RE-5002 rotary evaporator, R-1005 rotary evaporator, D-R-1050 rotary evaporator, etc.), glass reactors, vacuum pumps, and so forth. So far, we now have gained rich expertise and ISO9001, CE and other related certifications on this area. If you need, please contact us in time.
